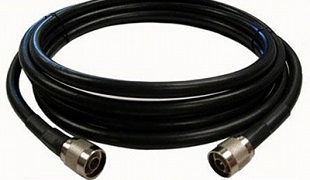

Jumpers
Purpose:Used for connection between Antenna and Feeder Cable, connecting between Cabinet and Feeder cable.
Feature:Low Loss, Low VSWR with Reliable Connection, Flexibility, Convenient for Installation.
Jumpers:Cables are available for different types of connection interfaces and customized lengths as per customer requirement.
ELECTRICAL SPECIFICATIONS
Type of Jumper Cables: 1/4” / 1/2” Low Loss Jumpers
Frequency Range: 800 MHz - 2500 MHz
Return Loss: Better than 20 dB
Impedance: 50 Ω
Connection Cable: DIN-type (7/16) / N-type
| INSERTION LOSS | |
|---|---|
| Frequency (MHz) | Attenuation (dB / 100 M) 1/4” / 1/2” |
| 800 MHz | 12.72 dB / 6.35 dB |
| 900 MHz | 13.55 dB / 6.75 dB |
| 1000 MHz | 14.35 dB / 7.20 dB |
| 1800 MHz | 19.70 dB / 9.90 dB |
| 2000 MHz | 20.80 dB / 10.50 dB |
| 2200 MHz | 21.90 dB / 11.10 dB |
| 2400 MHz | 23.00 dB / 11.60 dB |
| 2500 MHz | 23.60 dB / 11.95 dB |
